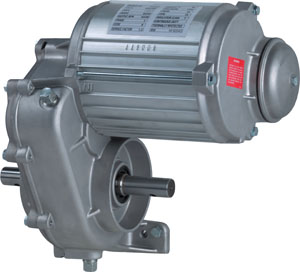

| Durst Helical Gearmotor Specifications |
| NI Part # |
Gear Ratio |
HP |
Motor RPM |
Output RPM |
| 62086 |
40:1 |
1.5 |
3500 |
86 |
| 62068 |
50:1 |
1.5 |
3500 |
68 |
| 62043 |
40:1 |
.75 |
1750 |
43 |
| 62034 |
50:1 |
.75 |
1750 |
34 |
. Aluminum gearbox with heavy-duty bearings and gearing.
. Helical gearing for extended life and quiet operation.
. Universal (8-hole) footprint.
. Interchangeable with Valley type unit.
. Drive shaft bell adapters.
. Finned aluminum motor casing for cool operation.
. Steel sleeve inside aluminum housing at bearing seats.
. Electric conduit junction box sealed with o-ring.
. Loctite sealing of all motor junction faces.
. Three condensation drain ports in motor.
. Threaded conduit box for cord connector.
. Three Phase 460V/60Hz - 380V/50Hz.
. Installation Class - F.
. Thermal protection.
• UL & CSA Certified.
• Continuous Duty.
| Durst Gearmotor Stators |
| NI Part # |
Description |
| 79077D |
Stator, 3/4 hp, Durst |
| 79066D |
Stator, 1.5 hp, Durst |
|
|
